High Accuracy PCB Depanelizer Machine with 2 Linear Blades

Name: High Accuracy PCB Depanelizer Machine with 2 Linear Blades
Brand: SMTfly
Price: 1 USD

High Accuracy PCB Depanelizer Machine with 2 Linear Blades Manufactures

Place of Origin : Dongguan China

Brand Name : SMTfly

Model Number : CWVC-330

Certification : CE ISO9001

Packaging Details : Each set packed in plywood case

Delivery Time : 1-3 days after payment confirm

Payment Terms : TT in advance

Supply Ability : 3000 sets/year

MOQ : 1Set

Price : USD/1Set

Blade mareial : japan high speed steel

Warranty : 12 months free

Contact Now

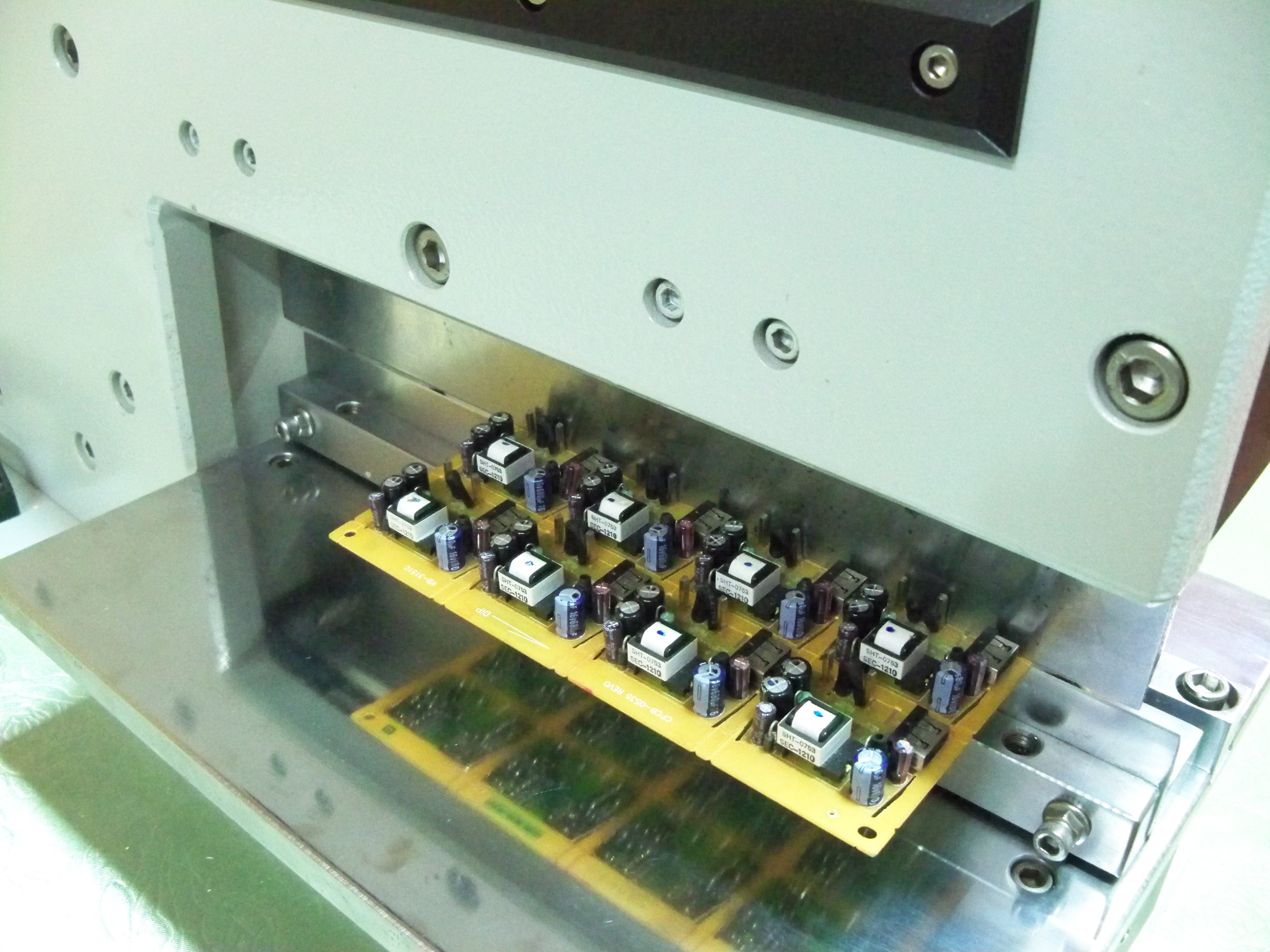

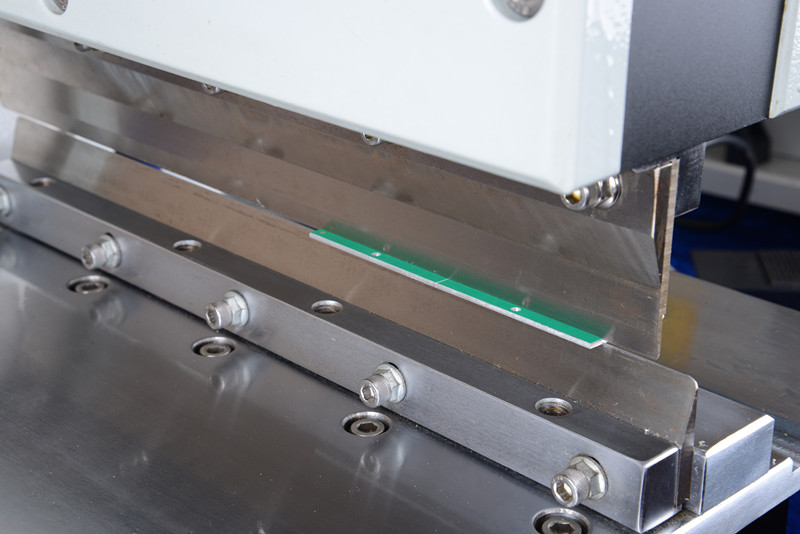

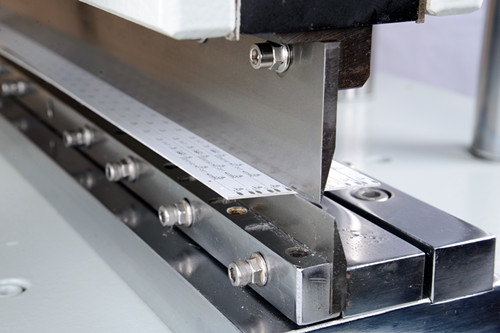

High Accuracy PCB Depanelizer Machine with 2 Linear Blades Feature:

1. Pneumatically driven and electromagnetic valve control.
2. Depaneling process without vibrations due to pneumatic drive unit .
3. Depaneling PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be depaneled safely.
4. Depaneling operation is that operator stamps the foot pedal to Depanel PCB.
5. Highest components near the v groove of PCB can be up to 70mm.
6. The minimum distance is allowed to be 0.5mm between V groove and the electronic components.
7. Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.

pcb depanelizer machine CWVC-330 Specification:

Model	CWVC-330
Max. PCB depaneling length	330mm(Can custom made)
PCB depaneling thickness	0.3-3.5mm
Voltage and Power	110V/220V 10W
Working air pressure	0.5-0.7Mpa
PCB depaneling speed	due to operator skilled level
PCB depaneling machine size	620230400mm
PCB depaneling machine weight	165kg
